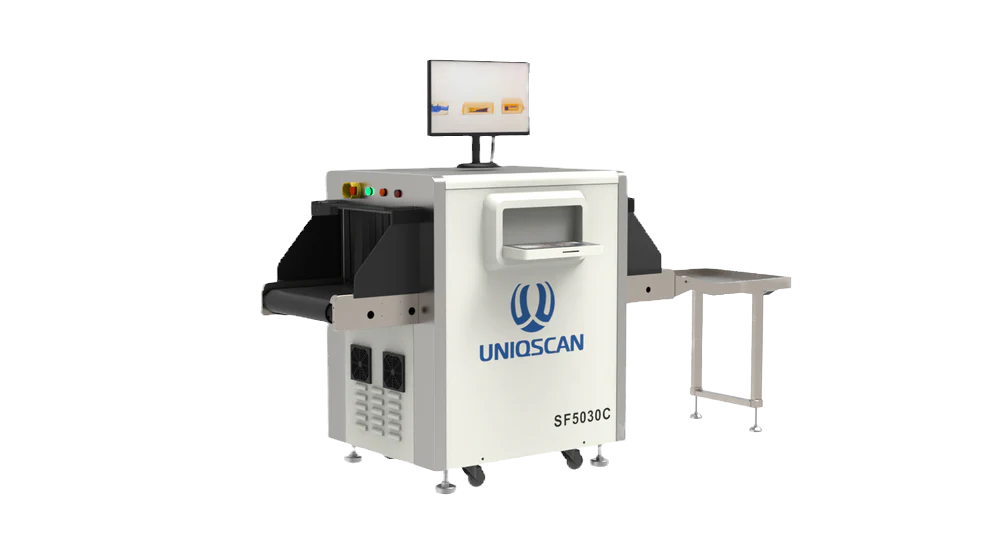

SF5030C

The Uniqscan SF5030C is a high-performance single-energy X-ray scanner for medium-sized bags and parcels, suitable for airports, customs, and secure facilities with enhanced penetration for denser materials.
It features a compact tunnel, high-resolution imaging with material differentiation, and operator tools like edge enhancement, organic striping, and threat alerts.
General Specifications
Feature
Specification
Tunnel Size
500 (W) × 300 (H) mm
Conveyor Speed
0.22 m/s
Conveyor Max Load
120 kg
Leakage Radiation
<0.1 µGy/h
Steel Penetration
36 mm
Package Dimensions
1750 × 900 × 1440 mm
Gross Weight
425 kg
X-ray Generator Details
Feature
Specification
Orientation
Upward
Tube Current
0.4–1.2 mA (adjustable)
Anode Voltage
150 kV (adjustable)
Angle
80°
Cooling/Working Periods
Sealed oil bath with forced air / 100%
